INK POUCH & CARTRIDGE

INK POUCH

 All of our ink pouches are layered with a block-out film which protects ink from sunlight or lighting for waterbased, solvent as well as UV inks. We have standardized sizes of each ink pouch but we are able to make any size of ink pouch for your special application if you guarantee MOQ.

220ml / 440ml / 600ml Ink Pouch

For Mimaki, Roland and Mutoh

220ml Ink pouch
- size : 90*255mm(all side sealed for
           front filling)
           90*265mm(end open for rear filling)

440ml ink pouch
- Size : 90*510mm(all side sealed for
           front filling)
           90*570mm (end open for rear filling)

600ml ink pouch
- Size : 90*520mm(all side sealed for
           front filling)
           90*570mm(end open for rear filling)

*. Compatible printer: Mimaki/Roland/ Mutoh:

2Liter Ink Pouch

For Mimaki MBIS System

1. Size: 150X300X40(M)mm
2. Ink capacity: 2L
3. Type: M type on the side
4. Front ink filling
5. Compatible printer: Mimaki

1 & 2 Liter

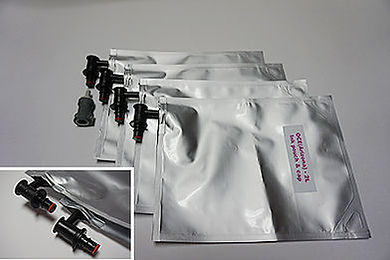

For OCEA

1. Size: 210X170X70(M)mm
            Ink capacity : 1L
2. Size : 210X270X70(M)mm
            Ink capacity : 2L
3. Front ink filling
4. Compatible printer:
    OCE Arizona 550XT/550GT/
    360XT/360 GT/ 300 GT/ 250 GT
5. Accessory : coupling body available

1 Liter

For hp DJ 9000/10000s

1. Size: 125X360X40(M)mm (all side sealed
            for front filling)
            125X460X40(M)mm (end open for
            rear filling)
2. Type: M type on the side
3. Compatible printer: hp DJ 9000/10000s

1 Liter Ink Pouch

For Epson GS 6000 & Mutoh

1. Size: 125X270X40(M)mm
2. Ink capacity: 950ml (Epson GS6000)
                       1L (Mutoh)
3. Type: M type on the side
4. Front ink filling
5. Compatible printer: Epson GS6000/Mutoh
6. With plates on both side

1 Liter Ink Pouch

For NITE CISS

1. Size: 160X350 (All side sealed for front
            filling)
            160X400 (End open for rear filling)
2. Ink capacity : 1L
3. Compatible printer: Mimaki/Roland/Mutoh

CARTRIDGE POUCH

Compatible Cartridge

For Mimaki, Roland and Mutoh

ANYCISS

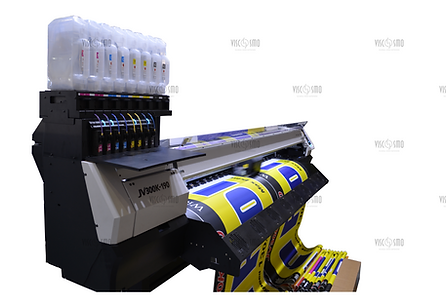

ANYCISS for Mimaki / Roland / Mutoh

• Shut-off fail-safe system to stop printer if ink becomes empty


• System to prevent foreign bodies / dried ink passing into printer ink feed line


• Easy secure method to “seat” new ink pouch correctly to avoid puncturing /leaking


• Closed ink feed system to prevent air entering the ink feed system when connected


• System to ‘bleed’ air out ink feed system when being fitted / ink pouch replacement


• Shut-off system to allow removal of empty ink pouch and replacement to be fitted without leakage

Up to 2 liter ink pouch & Plastic Tank

Unlocking Lever

Plastic needle & one-way valve mounted on the stand

Enough ink tubing inside bottom of the stand to adjust length

Easy cartridge connector & One –way valve mounted inside of the cartridge

IC chip reader on the back of cartridges for MIMAKI and ROLAND

Smartchip reader on the back of cartridges for MUTOH

Plastic sensor

Feature of ANYCISS

4 x 2 liter ink tank and 4 x cartridges For 1 x CMYK Mode

4 x 2 liter ink tank and 8 x cartridges For 2 x CMYK Mode

6 x 2 liter ink tank and 6 x cartridges For 1 x CMYKLcLm Mode

8 x 2 liter ink tank and 8 x cartridges For 2 x CMYK Mode or 8 individual color

Model of ANYCISS

Related products: Ink Filling machine / 2 liter ink pouch / Mimaki & Roland chip



ANYCISS Manual

DOWNLOAD
